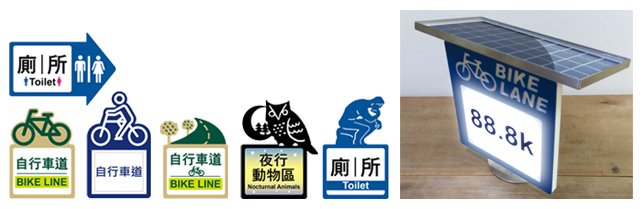

Solar/LED Signboard

Power unit Mono or Poly crystalline silicon solar panel
Open-circuit voltage 10V
Short-circuit current 800mA
Storage unit Long life, High capacity lithium battery
Battery voltage 7.4 V
Battery capacity 2100mAh
Light unit LED guide panel
Luminous color White
Number of LEDs 6 inch, 8 inch
Life More than 100,000 hours
Operating temperature -20°C~ 75℃
Dimensions >300mm x 300mm x 19mm
Case material PC、Poly、Stainless steel
1. All components are modularized for easy maintenance.
2. The design can be customized according to the requirements of different fields.
3. High energy-saving LED guide panel used, Clear recognition at night without glare.
